This product is composed of a high-temperature resistant flame-retardant electric wood frame, high-quality enameled copper wire, three-layer insulated wire, and a high magnetic flux density ferrite core. It has the characteristics of high power, small size, high efficiency, wide frequency range, easy installation, low cost, low temperature rise, and good electrical performance, and can work effectively for a long time under rated load. Widely used in various switching power supplies, high-frequency signal transmission, and impedance matching.

Product power: 10W Output voltage: According to customer requirements

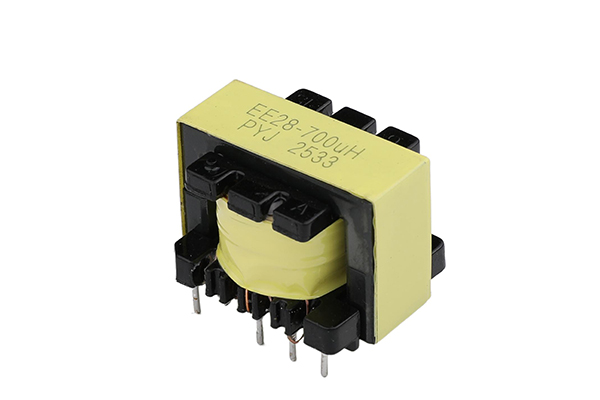

Product Model: EI 28 High Frequency Transformer

Input voltage: AC220V Pin: 5+5

Application scope: 1. Switching power supply industry 2. Power and electrical equipment industry 3. Medical equipment industry 4. Communication equipment industry 5. Solar energy and inverter industry 6. Electric vehicle charger industry 7. In car electronic equipment industry 8. Smart home industry 9. Environmental protection equipment industry 10. New energy industry 11. Mechanical equipment industry 12. Household appliances industry 13. Digital products industry 14. Fitness and beauty equipment industry 15. LED lighting industry 16. Frequency converter industry

Production process: winding → installing magnetic core → gluing → soldering → laser marking → testing → immersion → baking → testing → packing

Usage environment

1. The ambient air temperature ranges from -5 ℃ to+40 ℃,

2. The installation location shall not exceed an altitude of 2000m;

3. Please do not place any other flammable or explosive materials within 50 centimeters of the transformer, and do not place any other objects within 1 centimeter to ensure a good heat dissipation environment for the transformer and ensure safety.

Please accurately calculate the load power and do not overload. Do not short-circuit the output. If there is no output, please turn off the power for one minute before powering it back on for use. Before powering on, please carefully confirm whether the transformer is properly connected and ensure that the transformer circuit is reversed.

4. Places without severe vibrations and impact vibrations

5. In a medium without explosive hazards, and where there are no gases or conductive dust that can corrode metals or damage insulation in the medium;

6. A place that is not affected by rain and snow.

Customization Instructions

Attention to users when purchasing products:

1. Basic model specifications, capacity, and quantity of transformers.

2. The primary and secondary voltages of the transformer.

3. When providing the initial voltage, also provide the capacity allocation for each voltage, or refer to case studies to select suitable models and specifications of products.

4. The appearance and installation dimensions of our company's products are for reference only. If the size needs to be changed, special instructions can be provided when ordering.
