Model	Specification	Length(mm)	Width(mm)	Height(mm)	Row Spacing(mm)	Pin Pitch(mm)	Pin Diameter(mm)
ER2828	Vertical 5+5	25.2	23.1	27.1	17.5	5	0.8
ER2828	Vertical 6+6	31	23	29.1	17.5	5	0.8
ER2828	Horizontal 6+6	29	29.7	21	25.5	3.7/7.5	0.6
EC2820	Vertical 5+5	26	22	18.95	17.7	5	0.8
EC2828	Horizontal 6+6	29	27.85	24.1	25	5	0.8

The above are commonly used skeleton styles in the company, and other styles are not currently included. Please feel free to inquire. Our company can customize various specifications of ER/EC2828 high-frequency transformers according to customer requirements.

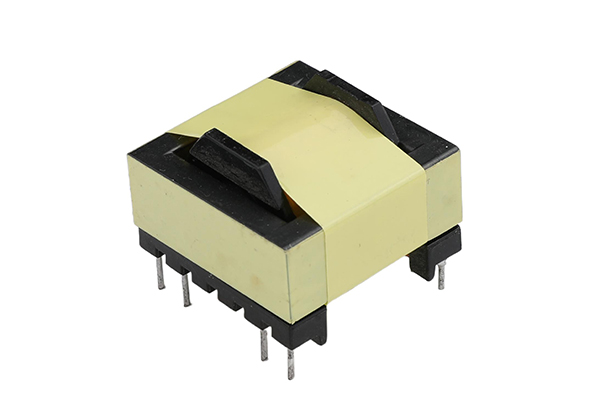

II EC2828 High Frequency Transformer Performance

1. Operating frequency: 20kHz-500KHz

2. Output power: 30 to 150 W

3. Working temperature: -40 ℃ to+125 ℃

4. Storage temperature: -25 ℃ to+85 ℃

5. Storage humidity: 30 to 95%

III Characteristics of EC2828 High Frequency Transformer

EC2828 high-frequency transformer has the characteristics of easy winding, moderate price, and high reliability. The EC/ER2828 high-frequency transformer is a basic type of ferrite core, which is widely used in switching power supplies and various electronic circuits. The oscillation modes include full bridge, half bridge, single ended, resonant, push-pull circuits, etc. It has excellent material properties and is suitable for typical transformer structures. The cylindrical center column of the EC/ER core makes winding easier and increases the cross-sectional area of the winding, which can increase output power. It is suitable for various switching power supply transformers and blocking coils.

4 Application of EC2828 High Frequency Transformer

EC2828 high-frequency transformer is commonly used in main transformers, LLC resonant inductors, DC-DC converters, switch mode power supply chargers, etc.
