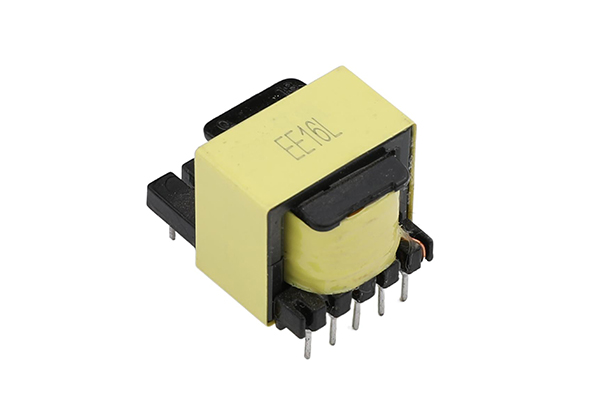

EE1610 high-frequency transformer for ice making machine
| Model | Specification | Length(mm) | Width(mm) | Height(mm) | Row Spacing(mm) | Pin Pitch(mm) | Pin Diameter(mm) |
|---|---|---|---|---|---|---|---|
| EE16 | Vertical 3+3 | 11.4 | 12.6 | 13 | 9 | 3 | 0.6 |
| EE16 | Vertical 4+4 | 14.3 | 13.9 | 7.2 | 10 | 2.5 | 0.6 |
| EE16 | Vertical 5+5 | 16 | 13.1 | 14.1 | 10.5 | 3.2 | 0.6 |
| EE16 | Vertical Wide 5+5 | 16.6 | 17.1 | 12.1 | 13 | 3 | 0.7 |
| EE16 | Vertical Wide 5+2 | 16.4 | 23.1 | 11.5 | 20 | 3.2-3.3 | 0.6 |
| EE16 | Horizontal Double Slot 2+2 | 11.4 | 13.5 | 11 | 11.2 | 7.5 | 0.6 |
| EE16 | Horizontal Four Slot 2+2 | 13 | 15.5 | 12.1 | 13 | 7.5 | 0.7 |
| EE16 | Horizontal 4+4 | 15.1 | 13.6 | 14.4 | 11 | 3 | 0.6 |
| EE16 | Horizontal 5+5 | 15.5 | 15.5 | 12.9 | 12.5 | 2.5 | 0.6 |
| EE16 | Horizontal 6+6 | 15 | 15.4 | 11.2 | 12.5 | 2.5 | 0.6 |
| EE16 | Horizontal Wide 5+5 | 16 | 18.3 | 13.2 | 15.5 | 3.25 | 0.7 |
The above are commonly used skeleton styles in the company, and other styles are not currently included. Please feel free to inquire. Our company can customize various specifications of EE16 high-frequency transformers according to customer requirements.
II Performance of EE16 high-frequency transformer
1. Operating frequency: 20kHz-500KHz
2. Output power: 0.5 to 15 W
3. Working temperature: -40 ℃ to+125 ℃
4. Storage temperature: -25 ℃ to+85 ℃
5. Storage humidity: 30 to 95%
III Characteristics of EE16 high-frequency transformer
EE16 high-frequency transformers have the characteristics of small size, low price, and high reliability. EE type transformer is a basic type of ferrite core with stable performance, low cost, and high current. Widely used in power conversion and line filtering. From small to large in size, it meets the needs of various application circuits. If using heat-resistant 155 ℃ or 180 ℃ polyurethane enameled wire, it can meet different temperature conditions and is suitable for various switch power supplies, inverters, UPS, etc.
IIII Application of EE16 High Frequency Transformer
EE16 high-frequency transformer is commonly used in auxiliary power transformers, DC-DC converters, drive transformers, digital cameras, handheld switch power chargers, etc
