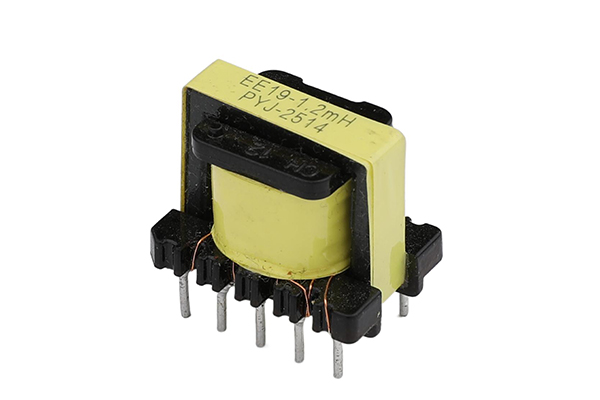

One EE19 high-frequency transformer

EE19 high-frequency transformer is a transformer suitable for high-frequency switching power supplies, with the characteristics of high efficiency and low loss. It uses high-quality ferrite materials to ensure good magnetic properties and stability. EE19 high-frequency transformer is suitable for various electronic devices, such as communication equipment, computer power supplies, adapters, etc.

II Performance of EE19 high-frequency transformer

1. Operating frequency: 20kHz-500KHz

2. Output power: 0.5 to 18 W

3. Working temperature: -40 ℃ to+125 ℃

4. Storage temperature: -25 ℃ to+85 ℃

5. Storage humidity: 30 to 95%

III Characteristics of EE19 high-frequency transformer

EE19 high-frequency transformer has the characteristics of small size, low price, and high reliability. EE type transformer is a basic type of ferrite core with stable performance, low cost, and high current. Widely used in power conversion and line filtering. From small to large in size, it meets the needs of various application circuits. If using heat-resistant 155 ℃ or 180 ℃ polyurethane enameled wire, it can meet different temperature conditions and is suitable for various switch power supplies, inverters, UPS, etc

IIII Application of EE19 High Frequency Transformer

EE19 high-frequency transformers are commonly used in auxiliary power transformers, DC-DC converters, drive transformers, digital cameras, handheld switch power chargers, etc.
