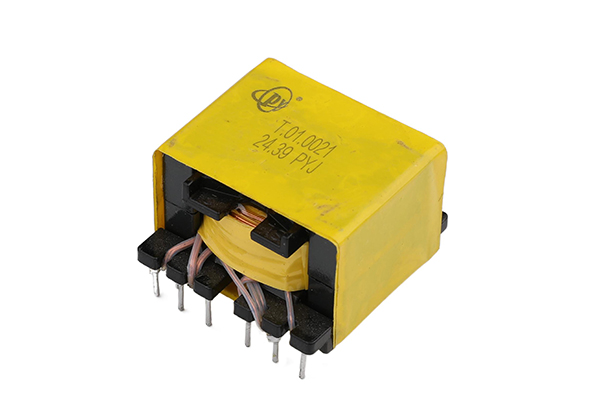

One PQ3220 high-frequency transformer

PQ3220 high-frequency transformer is an electrical component with a wide range of application scenarios. It can convert input AC power into stable DC power, providing stable power supply for electronic devices. Its output power range is large and can meet the power requirements of various electronic devices.

II Performance of PQ3220 High Frequency Transformer

1. Operating frequency: 20kHz-500KHz

2. Output power: 10 to 1000 W

3. Working temperature: -40 ℃ to+180 ℃

4. Storage temperature: -25 ℃ to+85 ℃

5. Storage humidity: 30 to 95%

III Characteristics of PQ3220 High Frequency Transformer

PQ3220 high-frequency transformer has the characteristics of tight structure, high power, moderate price, and high reliability. The magnetic core of PQ type high-frequency transformer is a ferrite core designed to meet the requirements of new switching power supplies. Its shape can meet the requirements of reducing copper and iron losses in switching power supply transformers operating at high frequencies, as well as the temperature rise requirements of switching power supplies; Its circular center column makes winding easier, increases the capacity of the wire package, and the lead end of the skeleton makes product installation very reliable, suitable for switch power supplies and blocking coils.

4 Application of PQ3220 High Frequency Transformer

PQ3220 high-frequency transformer is commonly used in electric vehicle chargers, DC-DC converters, drive transformers, laptop power supplies, inverters, UPS power supplies, communication power supplies, etc.
