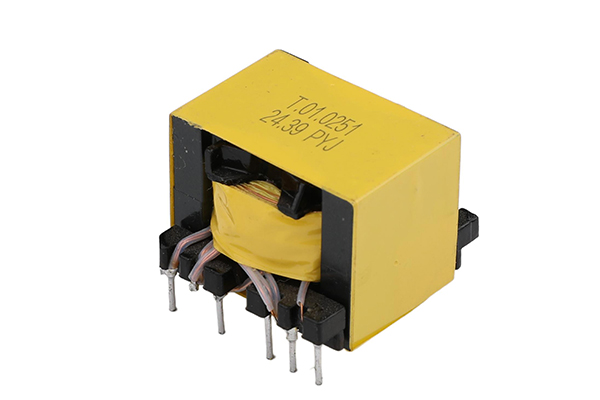

PQ2620 high-frequency transformer

PQ2620 High-Frequency Transformer Product Description

Model	Specification	Length(mm)	Width(mm)	Height(mm)	Row Spacing(mm)	Pin Pitch(mm)	Pin Diameter(mm)
PQ2620	Vertical 6+6	29.3	26.5	19.25	25.5	3.8	0.8
PQ2620	Vertical High Amplitude Width 6+6	29.3	26.5	19.5	25.5	3.8	0.8
PQ2620	Vertical 6+6 with Housing	30	26.5	17.7	25.5	3.8	0.8
PQ2620	Vertical Wide 6+6	33	26.5	19.9	30	3.8	0.7

The above are the common bobbin styles of our company; other styles are not listed here. Welcome to consult. Our company can customize various specifications of PQ2620 high-frequency transformers according to customer requirements.

II. Performance of PQ2620 High-Frequency Transformer

1. Operating Frequency: 20kHz-500KHz

2. Output Power: 10 to 1000 W

3. Operating Temperature: -40℃ to +180℃

4. Storage Temperature: -25℃ to +85℃

5. Storage Humidity: 30 to 95%

III. Characteristics of PQ2620 High-Frequency Transformer

PQ2620 high-frequency transformer features a compact structure, high power, moderate price, and high reliability. The core of PQ-type high-frequency transformer is a ferrite core designed to meet the requirements of new switching power supplies. Its shape can meet the requirements of switching power supply transformers operating at high frequencies to reduce copper loss and iron loss, and it can also meet the requirements of switching power supplies in terms of temperature rise. Its circular center column makes winding easier, increases the wire package capacity, and the lead end of the bobbin makes the product installation very reliable, suitable for switching power supplies and choke coils.

IV. Applications of PQ2620 High-Frequency Transformer

PQ2620 high-frequency transformer is commonly used in electric vehicle charger transformers, DC-DC converters, drive transformers, laptop power supplies, inverter power supplies, UPS power supplies, communication power supplies, etc.
