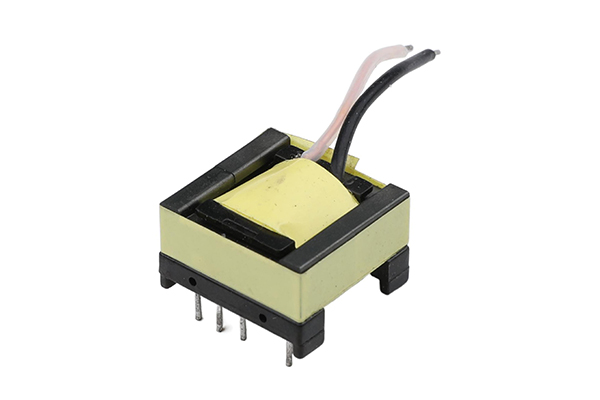

One EPC17 high-frequency transformer

The EPC17 high-frequency transformer features a flat ferrite core, making it compact in size and capable of meeting ultra-thin volume requirements. Strictly follow relevant standards and specifications in the design and manufacturing process to ensure high reliability.

II Performance of EPC17 high-frequency transformer

1. Operating frequency: 20kHz-500KHz

2. Output power: 5 to 18 W

3. Working temperature: -40 ℃ to+125 ℃

4. Storage temperature: -25 ℃ to+85 ℃

5. Storage humidity: 30 to 95%

III Characteristics of EPC17 high-frequency transformer

EPC17 high-frequency transformer has the characteristics of small size, low price, and high reliability. EPC transformer is a high-frequency transformer designed to adapt to ultra-thin switching power supplies. It has a flat ferrite core, which can meet both the high-power requirements of power transformers and the ultra-thin volume requirements. It can also adapt to the temperature rise requirements of switching power supplies, but the requirements for PCB boards will increase; It has improved the package space compared to EPD type transformers, and its EMI performance, leakage inductance, radiation and other parameters are superior to EFD type transformers, while its other performance is close to EE and EC type transformers.

4 Application of EPC17 High Frequency Transformer

EPC17 high-frequency transformers are commonly used in DC-DC converters, drive transformers, auxiliary power transformers, boost circuit transformers, mobile equipment transformers, etc.
