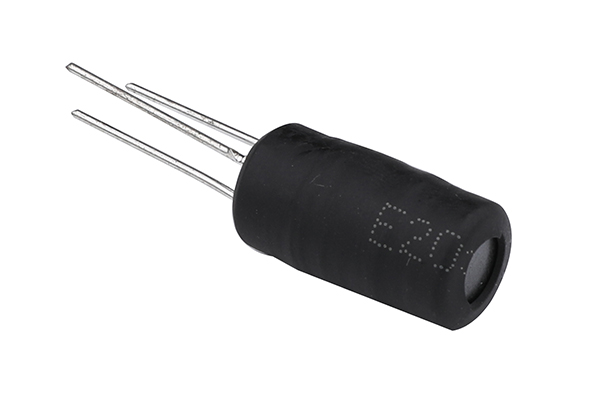

This product consists of a high-temperature-resistant flame-retardant bakelite skeleton, high-quality enameled copper wire, triple-insulated wire, and high-flux-density ferrite magnetic core. It features high power, compact size, high efficiency, wide frequency range, easy installation, low cost, low temperature rise, and excellent electrical performance, enabling long-term effective operation under rated load. It is widely used in various switch-mode power supplies for energy storage and filtering.

Primary applications of the product: mobile phones, digital photo frames, PDAs, laptops, mobile DVD players, car audio systems, televisions, satellite receivers, walkie-talkies, remote-controlled toys, wireless transceivers, anti-theft devices, LCD backlighting, power module LED drivers, network communication products, graphics cards, security products, sports equipment, medical instruments, firefighting equipment, and more.

Production Process: Winding → Insulation wrapping → Tab insertion → Inspection → Impregnation → Baking → Inspection → Labeling → Packing

Usage Environment

1. Ambient air temperature: -5°C to +40°C,

2. The installation site must be at an altitude not exceeding 2,000 meters;

3. Please do not place any other flammable or explosive items within a 50-centimeter range of the transformer, and avoid placing any other items within 1 centimeter. Ensure the transformer has a well-ventilated environment for proper heat dissipation and maintain safety.

Please accurately calculate the load power and avoid overloading. Ensure the output is not short-circuited. If there is no output, turn off the power for one minute before reconnecting. Before powering on, carefully verify that the transformer is correctly connected and ensure the transformer wiring is not reversed.

4. A location free from severe vibration and impact shocks

5. In environments without explosive hazards, where the medium contains no gases or conductive dust that can corrode metals or damage insulation;

6. A location sheltered from rain and snow.

Product Features:

Customization Instructions

What Users Should Know When Purchasing Products:

1. Basic model specifications, capacity, and quantity of the transformer.

2. The primary and secondary voltages of the transformer.

3. When providing primary and secondary voltages, allocate the capacity for each voltage or refer to case studies to select products with appropriate models and specifications.

4. The appearance and installation dimensions of our company's products are for reference only. If dimensional modifications are required, special instructions can be provided during the ordering process.
